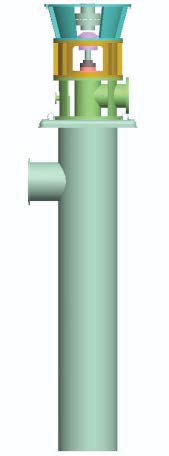

LDTN Condensate Pump
Download document
Specifications
Standard: JB/T6536-1992
Capacity: 60 ~ 2600m³/h
Head: up to 380m
Pressure: up to 50 bar
Temperature: -20°C to +120°C
Description
With high efficiency, stable and reliable operation, LDTN is an ideal condensate pump thermal (nuclear) electric

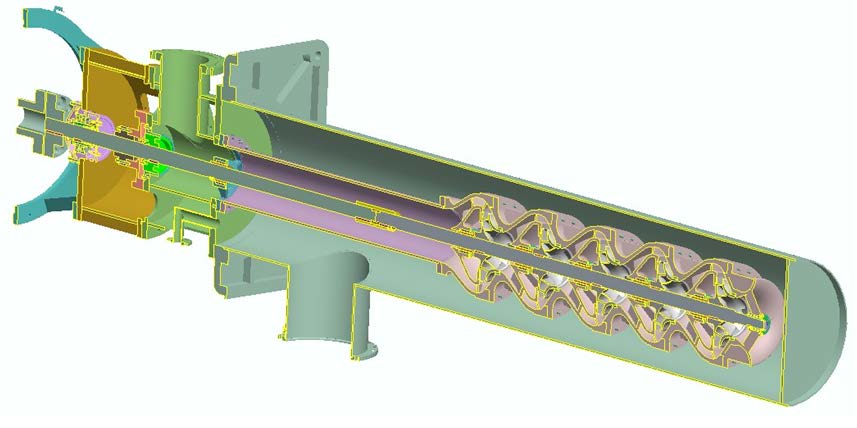

turbo generator unit. Due to advanced and compact pump structure, the axial force of the pump is borne by the pump
itself. This structure also ensure the pump operate reliably and safely. The LDTN adopts the latest technology
in hydraulic, stiff rotor, connection of pump axial, guiding bearing structure, balancing device system and etc., which
equal to the leading international standard quality.
Applications
LDTN is widely used as a full-capacity fixed-speed or speed-regulation
condensated water pump in 50 MW to
600MW thermal power plants. LDTN is
also suitable for pumping water-like fluids,
when meet with the special requirement of
NPSH or installation.
