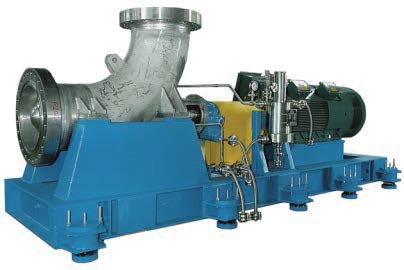

HZW/L Chemical Axial Pump
Download document
|
Specifications
Standard: GB/T13008-2010
Capacity: 400 ~ 11000m³/h
Head: up to 6.5m
Pressure: up to 6 bar
Temperature: -20°C to +180°C
Description

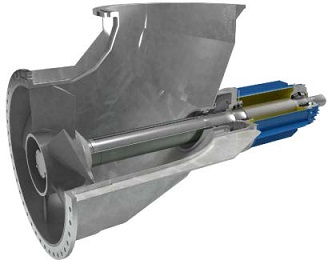

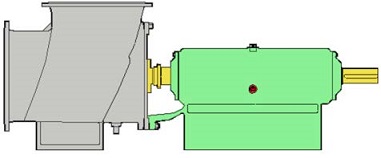

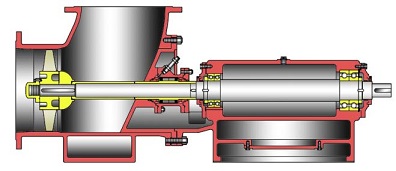

Cantilever bent tube structure.
Pull-out structure for easy repair.
Optimized hydraulic design.
Low rotation speed and low line speed design. Less damage to easy crystallizer fluids.
The forged pump shaft with high-quality materials to meet the requirements of torque strength and corrosion
resistance.
Suspended installation, thermal expansion stress compensation, no pump foundation, no expansion joints on the
pipeline.
Foundation installation, adopting spring support structure to reduce stress and deformation.
Various connection methods, such as direct connection, cardan joint connection or pulley connection.
Low vibration, low noise, smooth operation, high efficiency and energy saving.
Long-life reliable operation, up to one year maintenance interval, and up to 20 years life cycle.
The pump structure is reasonable and elegant, the parts are easy to assemble and disassemble.
Applications
The HZW/L pump is typically for neutral
or corrosive fluids, clean or with solid
particles fluids, flammable fluids as well as
stocks of various kinds. Mainly used in large
capacity, low head, especially suitable for
circulation pumps in salt making, caustic
soda making industry.
|
