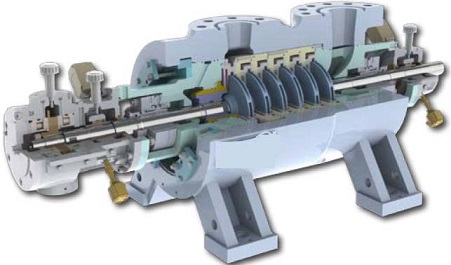

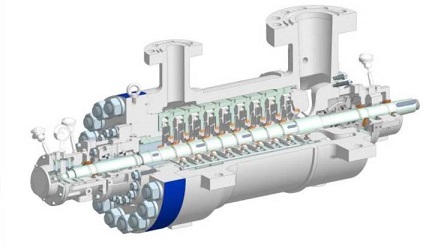

SpecificationsStandard: API610-2010 (ISO 13709)Capacity: 3 ~ 800m³/h Head: up to 3200m Pressure: up to 400 bar Temperature: -80°C to +450°C DescriptionThe BB5 is a horizontal, heavy duty, radial split of inner pump casing, multistage, double casing centrifugal pump with both-end mounted, which comply with the requirements of API610 and ISO13709. It is normally centerline supported for thermal stability and maximum nozzle load capacity.Benefiting from present hydrogenation feed pump structure, BB5 has been further improved by years of operational experience in the field. Reliable and mature structure makes the pump easier to maintain and has high operational reliability. The whole pump core (core package) can be replaced within 8 hours. And all the maintenance and replacement parts can be done without removing inlet and outlet pipes and motor. Applications |
