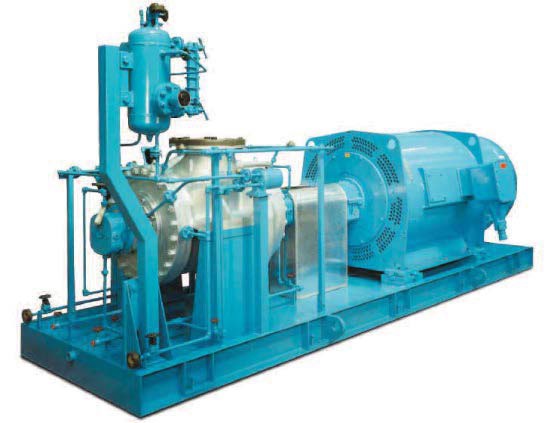

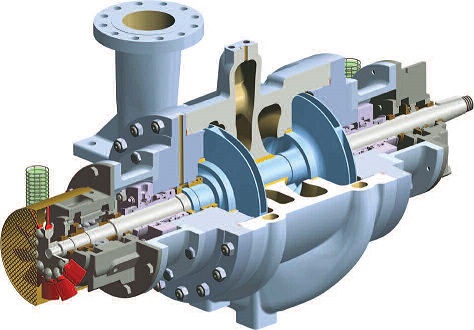

SpecificationsStandard: API610-2010 (ISO 13709)Capacity: 18 ~ 2500m³/h Head: up to 450m Pressure: up to 50 bar Temperature: -80°C to +450°C DescriptionThe BB2T is in full compliance with API610, 10th edition (ISO 13709). For high pressure applications, these pump types are designed as between bearings, horizontal two-stage, and have a radial split case construction. Centerline mounting is utilized to minimize thermally induced misalignment. Fully confined gaskets are furnished as required by API 610. Suction and discharge nozzles are furnished in accordance with ANSI or DIN Standards and are configured in the top/top orientation.ApplicationsThe BB2T applications range from light hydrocarbons at low temperatures, to corrosive fluids, coker furnace charge, vacuum bottoms and other services at high temperatures. |
